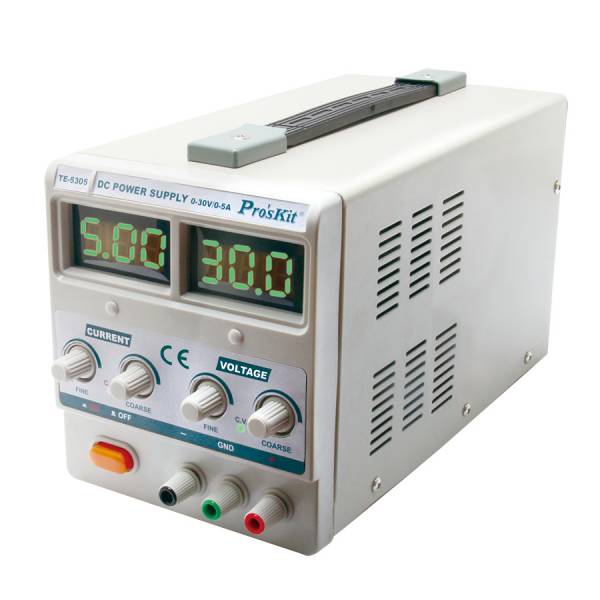

Unique protective design.

High quality SMD process.

Two level of control for current & voltage.

Automatic temperature & radiation system control.

Durable and convenient.

Applicable for school, production line, laboratory, repair center.



Power

150W



Display

3 digits green LED ×2set



Display error of voltage

±0.2%+2 digits



Display error of current

±1.0%+2 digits



Input voltage

AC220V ±10%, 50/60 HZ



Constant voltage

Output voltage

0~30V



Line regulation

≤ 0.01%+3mV



Load regulation

≤ 0.01%+5mV



Ripple voltage

≤ 1.0mV(rms)



Constant current

Output current

0~5A

Line regulation

≤ 0.2%+3mA



Load regulation

≤ 0.2%+3mA



Ripple current

3.0mA(rms)



Weight(kg)

5.3kg



Dimension

280x136x160mm
