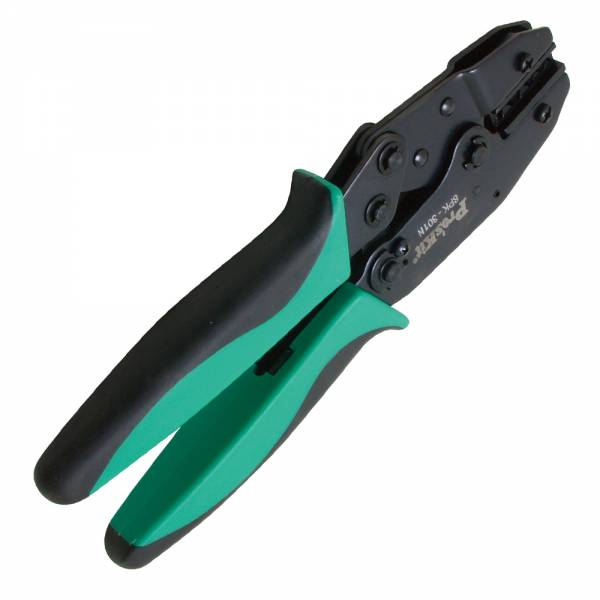

Pin terminal insulated & non-insulated wire ferrules

AISI 4140 Alloy steel

Compact Design

Ratcheting Release

Crimping Pressures Adjustment



Made from high quality carbon steel with black oxide finish for corrosion resistance and durability

The die is made of AISI 4140 alloy steel, and is molded by dewaxing casting, with accurate dimensions

Energy saving ratcheting mechanism requires less handle force and ensures the crimping quality

Safety crimp release helps eliminate rejected terminations due to incorrect positioning

Ergonomically shaped non-slip handles for user comfort

Interchange die sets for wide range of applications

Material Handle Application Crimp Size

OAL.(mm)



Individual packing

S45C

Green: PP



Black: TPR



Pin terminal insulated

& non-insulated wire

ferrules AWG 22/20/18/16/14/12

DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm²

JIS 0.35/0.5/0.9/1.25/2.0/3.5 mm² 220 Blister card
