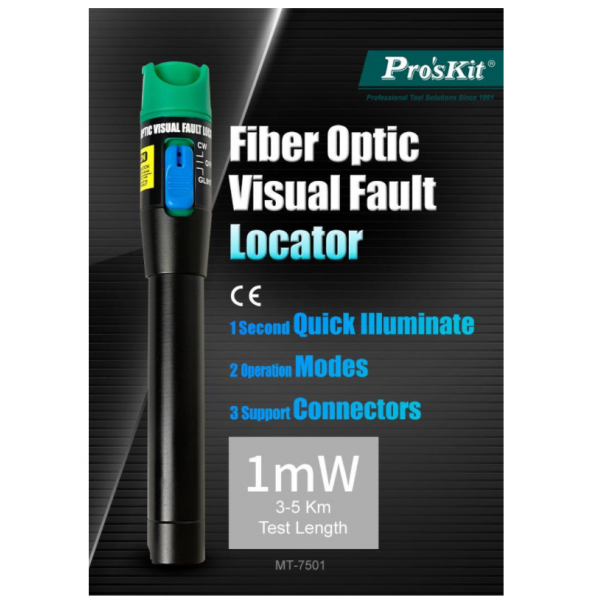

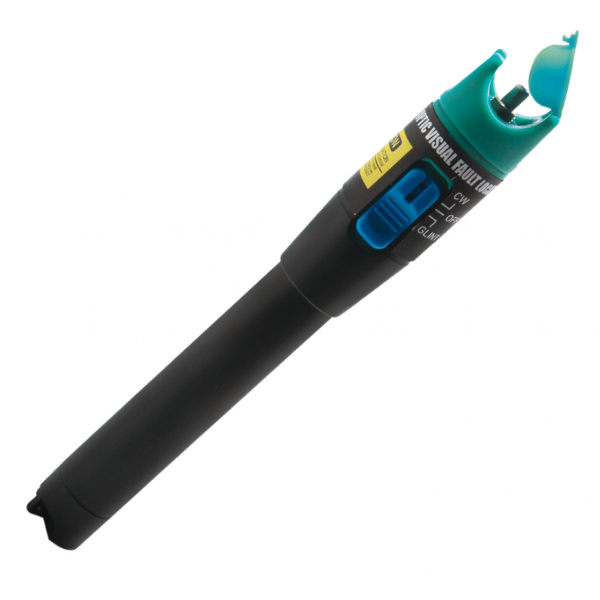

Pro'sKit MT-7501 1mW Fiber Optic Visual Fault Locator
- $75.00
Features:
1. SEC.QUICK ILLUMINATE
To make checking work convenient
2. OPERATION MODELS
Locating fault accurately
3. SUPPORTED CONNECTORS
To give more versatile choice(FC/SC/ST)
- Portable, durable and ease to use

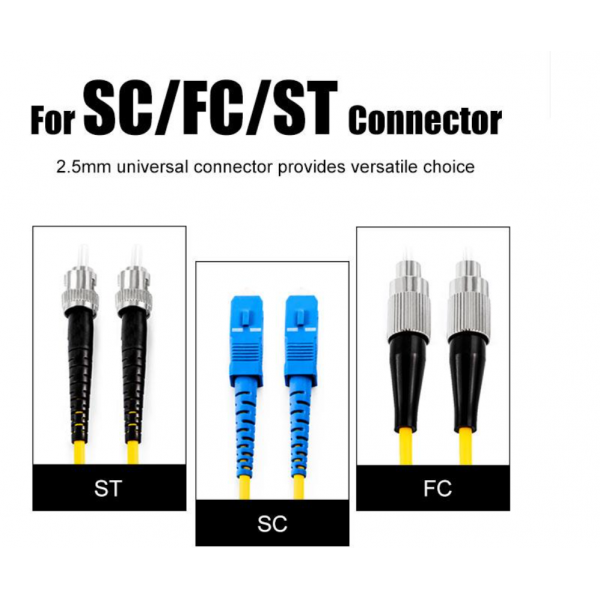

- Support 2.5mm universal connectors (for FC/SC/ST)

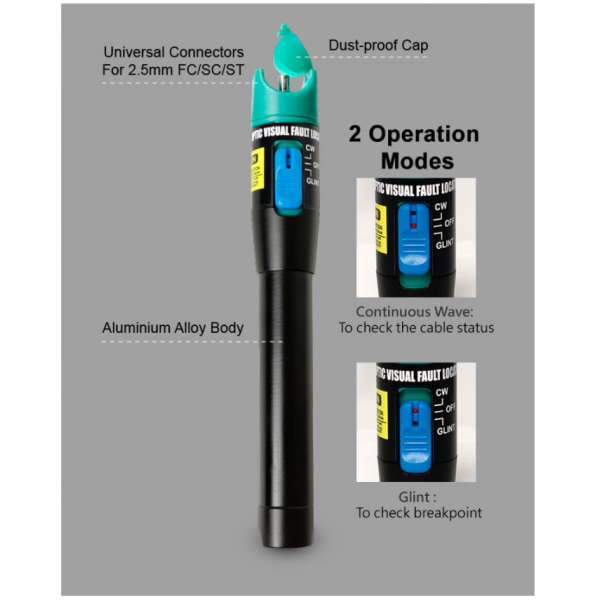

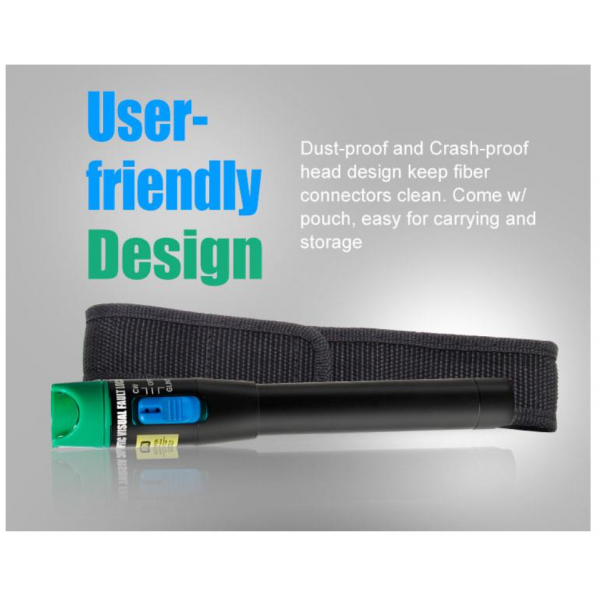

- Dust-proof & Crash-proof Cap design for laser head
- Both continuous and flashing modes available

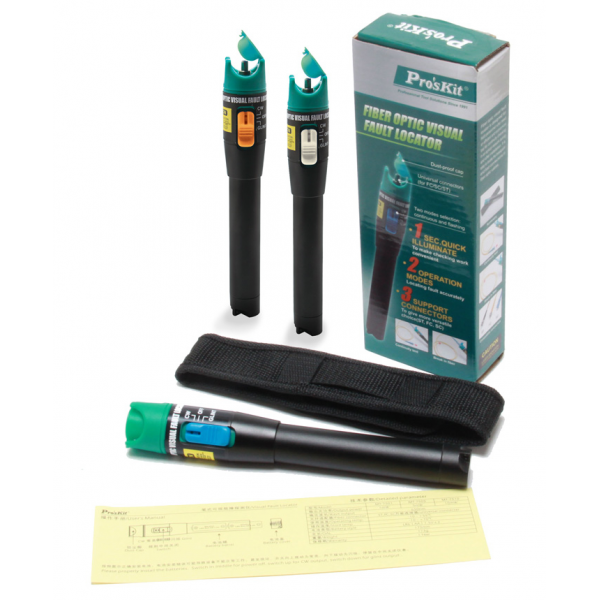

- Additional pouch bag receives convenient
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
MT-7501 1mW Fiber Optic Visual Fault Locator
Description:
Fiber optic visual fault locator is designed for field personnel who need an efficient and economical tool for continuity checking in an optical network during and after installation. It is easy to locate the breakpoint and bad connections in fiber optic cables.
| Model | MT-7501 | MT-7510 | MT-7530 |
| Wavelength | 650 nm±10 nm | ||
| Output Power | 1 mW | 10 mW | 30 mW |
| Laser | CLASS II | CLASS IIIB | CLASS IIIB |
| Measuring Distance | 3-5km | 8-10km | >20km |
| Battery | AA (1.5 V) x 2 | ||
| Connector | 2.5mm FC/ST/SC Universal | ||
| Size | 175mm | ||
| Operation Temperature | -10~+55 ℃ | ||
| Storage Temperature | -10~+70 ℃ | ||
| Optional Accessory | LC Adaptor (5MT-7601-LC) | ||
