Power Quality Analyzer
HIOKI PQ3198
Hioki portable power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The new and improved PQ3198 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. New features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
Model No. (Order Code)
PQ3198 (Main unit, current sensor is sold separately)

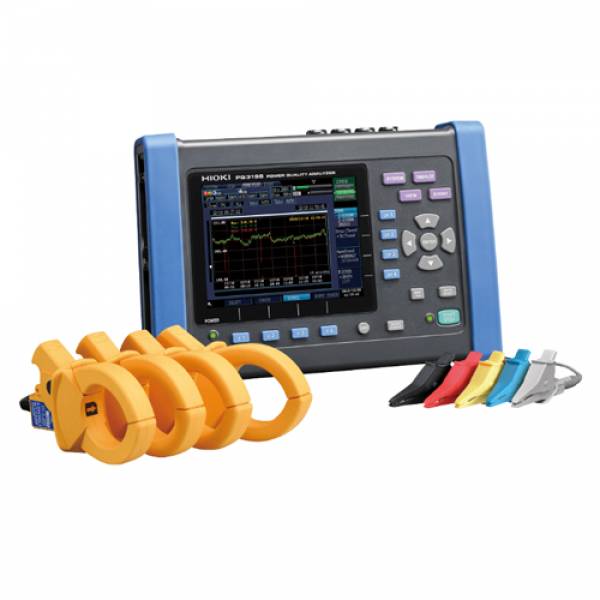

PQ3198-92 (Kit includes 600 A sensor x 4 and other options
PQ3198-94 (Kit includes 6000 A sensor x 4 and other options
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

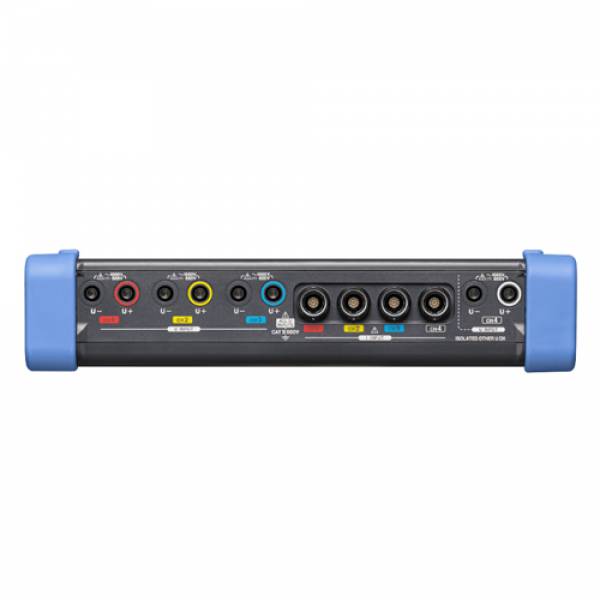

| Measurement line type | Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement) |
| Voltage ranges | Voltage measurement: 600.00 V rms |
| Current ranges | 500.00 mA to 5.0000 kA AC (depends on current sensor in use) |
| Power ranges | 300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use) |
| Basic accuracy | Voltage: ±0.1% of nominal voltage |
| Measurement items | 1. Transient voltage : 2 MHz sampling |
| Record | Repeated ON: 1 year, Maximum recording event: 9999 × 366 days (up to 9999 events per day) |
| Interfaces | SD/SDHC memory card, LAN (HTTP server function / FTP function), USB2.0 (for communication) |

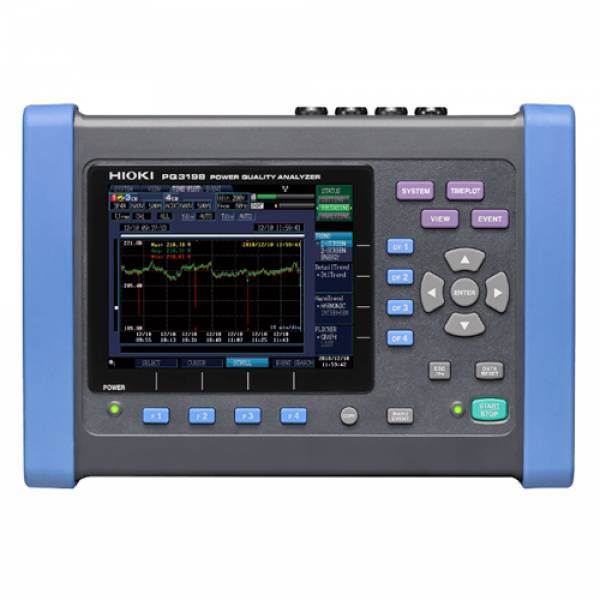

| Display | 6.5-inch TFT color LCD (640 × 480 dots) |
| Power supply | AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery Pack Z1003 (Continuous use: 180 minutes, Charging time: Max. 5 hr 30 m with AC adapter) |
| Dimensions and mass | 300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.6 kg (91.7 oz) (including Battery Pack Z1003) |
| Included accessories | Instruction manual ×1, Measurement guide ×1, Voltage Cord L1000 ×1 set (Red/ Yellow/ Blue/ Gray each 1, Black 4, 3m (9.84ft) length, Alligator clip ×8), Spiral tube x20, Color clip, AC Adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, SD Memory Card 2GB Z4001 ×1, Application software (PQ ONE) ×1 |
