Multimeter

Digital Multimeter

• Capable of measuring AC and DC currents up to 60A with OPEN CLAMP SENSOR.
• 3400 counts with bargraph display.
• Pocket size and heavy duty design.

Quantity

This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.

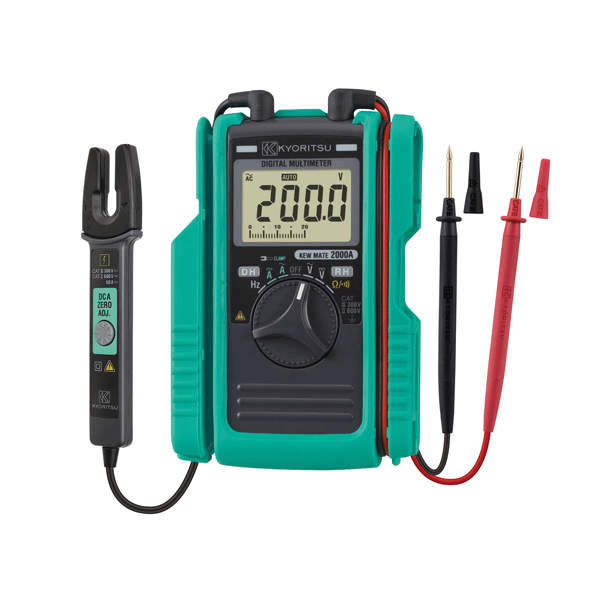

Models: KEWMATE 2000A Digital Multimeter

Kyoritsu KEWMATE 2000A

Included Accessories:

DC V	340.0mV/3.400/34.00/340.0/600V (Input Impedance: 10MΩ) ±1.5%rdg±4dgt
AC V	3.400/34.00/340.0/600V (Input Impedance: 10MΩ) ±1.5%rdg±5dgt [50 - 400Hz]
DC A	60.0A ±2%rdg±5dgt
AC A	60.0A ±2%rdg±5dgt (50/60Hz)
Ω	340.0Ω/3.400/34.00/340.0kΩ/3.400/34.00MΩ ±1%rdg±3dgt (0 - 340kΩ) ±5%rdg±5dgt (3.4MΩ) ±15%rdg±5dgt (34MΩ)
Continuity buzzer	Buzzer sounds below 30±10Ω (Continuity buzzer works on 340Ω range only)
Frequency	(AC A) 3.400/10.00kHz ±0.1%rdg±1dgt (AC V) 3.400/34.00/300.0kHz ±0.1%rdg±1dgt (Input sensitivity Current: more than 15A, Voltage: more than 30V)
Conductor size	Ø6mm max.
Applicable standards	IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)
Power source	R03 (AAA)(1.5V) × 2 * Continuous measuring time: approx. 45 hours (Auto power save: approx. 10 minutes)
Dimensions	128(L) × 87(W) × 24(D)mm
Weight	210g approx. (including batteries)
Included Accessories	R03 (AAA) × 2, Instruction Manual
Optional Accessories	9107 (Carrying case [Soft])
