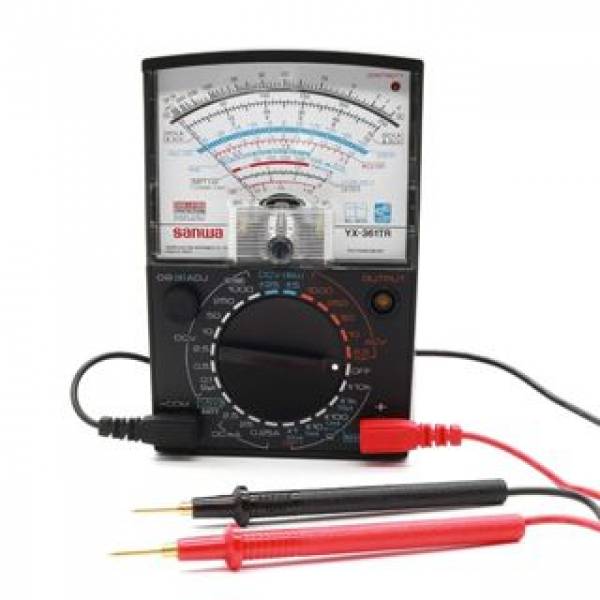

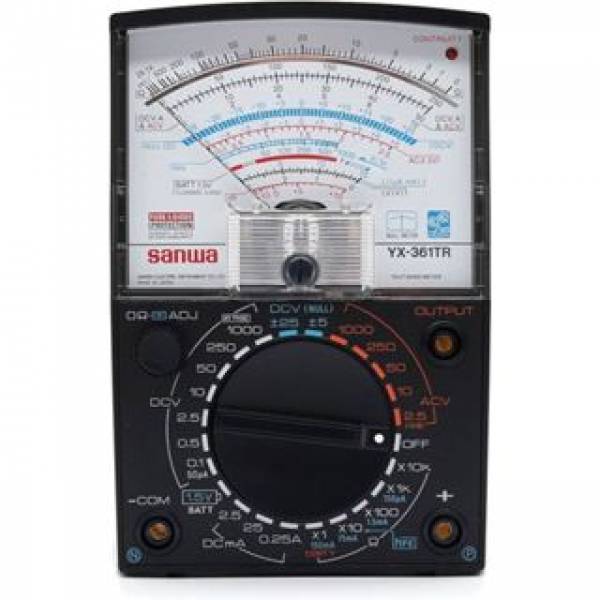

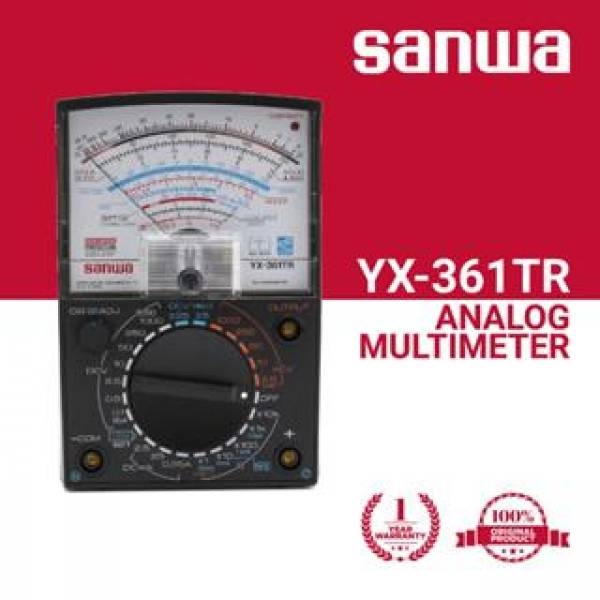

The Sanwa YX-361TR is an analog multimeter with 35 wide ranges and continuity check capability.
This multimeter is designed for low voltage circuits and has an average accuracy of 3% of full-scale reading. This device can measure DC voltages using the null reading or zero methods for both negative and positive readings, it can also measure DC current of up to 0.25A and can measure AC Voltage (1000V max). The YX-361TR is capable of measuring signal power in dB in the range of -10dB～+62dB. Users can also use it to check the continuity of a capable or a trace, for which an LED output is provided.

The device has an all-plastic rigid body that can withstand all kinds of environments. The instrument’s circuitry is protected by a replaceable (250V/0.5A) fuse.

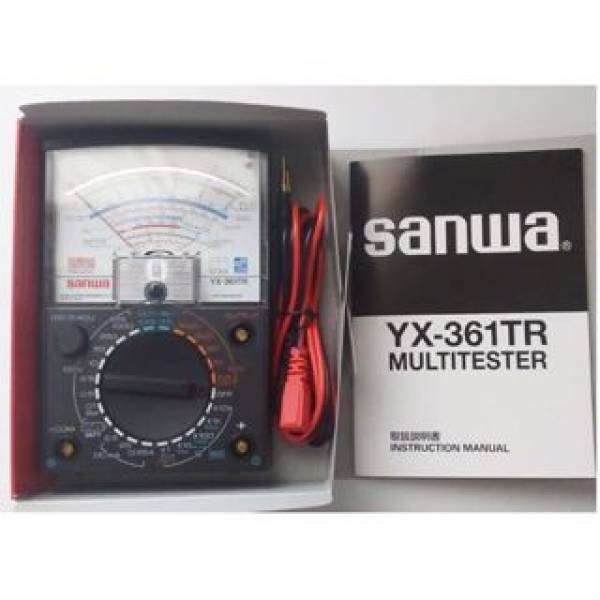

Meter includes one set of test leads and instruction manual.

Total 35 wide ranges (24 ch switch + additional functions)
±DCV zero center meter
LED for continuity check
Output terminal (series capacitor terminal)
Battery check
Specifications
Function    Range    Tolerance
DCV    0.1/0.5/2.5/10/50/250/1000V（20KΩ/V)    ±2.5% of full scale

±DCV    ±5/25V（40kΩ/V)    ±5% of full scale

ACV    2.5/10/50/250/1000V（9kΩ/V)    ±3% of full scale
(2.5/10V:±4% of full scale)

DCA    50μ/2.5m/25m/0.25A    ±2.5% of full scale

Resistance    2k/20k/200k/2M/20MΩ    ±3% of arc

Low-frequency output    -10～+62dB    ±3% of full scale

(2.5/10V:±4% of full scale)

hFE    hFE： 0～1000    ±3% of arc

Continuity    ≦ approx.10Ω: LED lights. Open circuit voltage: approx. 3V

Battery check    1.5V

Bandwidth    40Hz～20kHz(Less than AC50V : ±3% of full scale)

Battery    R6P(AA battery)1.5Vx2, 6F22(9V manganese battery)x1

Fuse    F0301 Φ5x20mm 0.5A/250V 300A Glass fuse

Size/Mass    H150×W100×D37mm/Approx. 290g

*The value in （　）at DCV and ACV is input resistance
