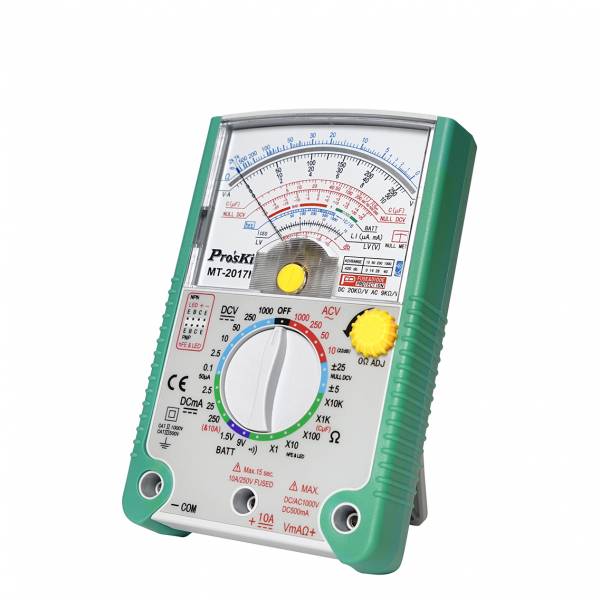

Pro'sKit MT-2017N Protective Function Analog Multimeter
- $30.00
Description :
An accurate, safe handheld meter that comes with mirrored Aluminum dial, robust protective holster alongside, built-in stand and hook-up design.
Features:
- An accurate, safe handheld meter that comes with mirrored Aluminum dial, robust protective holster alongside, built-in stand and hook-up design.
- New Mechanism Design
- The robust protection holster alongside provides better protection

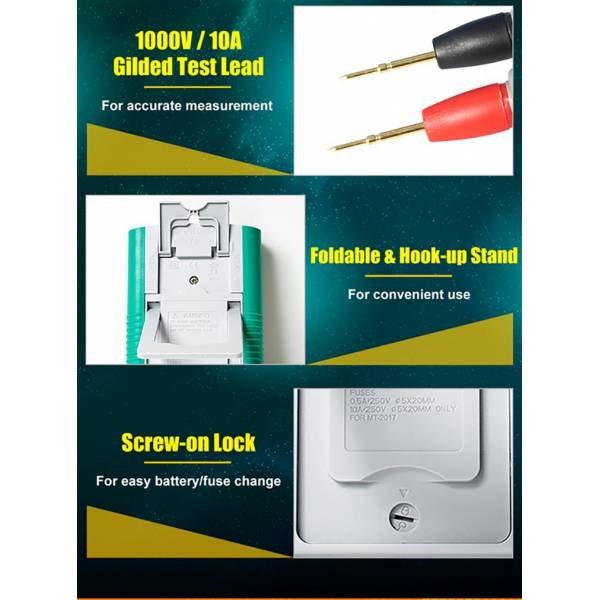

- Comes with foldable stand and hook-up design for convenient use.
- Separately 9V and 1.5V batteries cases, replace batteries or fuse more easily
- Versatile Multi-functions

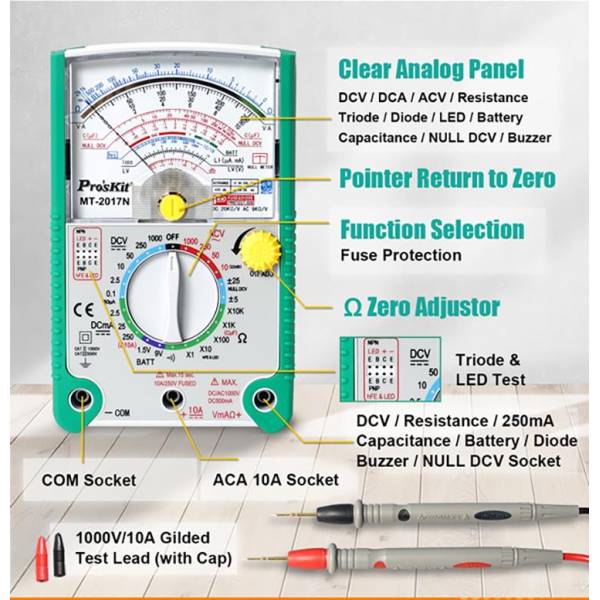

- Combines with DC/AC voltage, DC current, resistance, capacitance, decibels, diode, transistor hFE, LED test and battery check function to meet different application requirements.
- Reliable, Safe and Accurate
- Complies with CE and Pollution Degree 2 safety rated

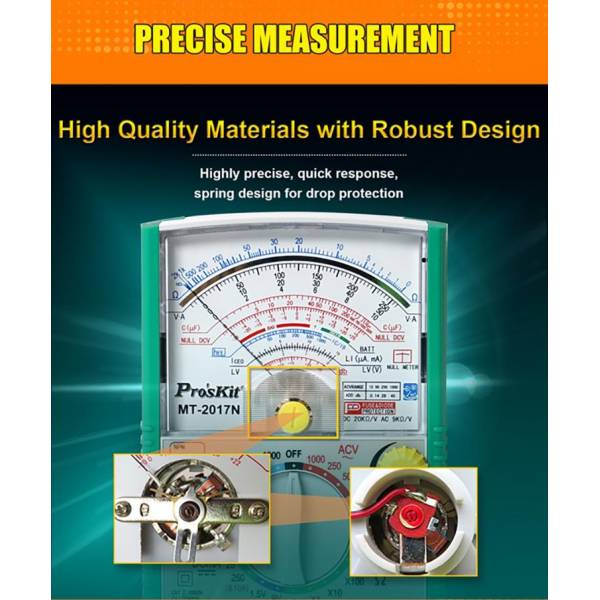

- Built-in strong magnet pivot-jewell movement

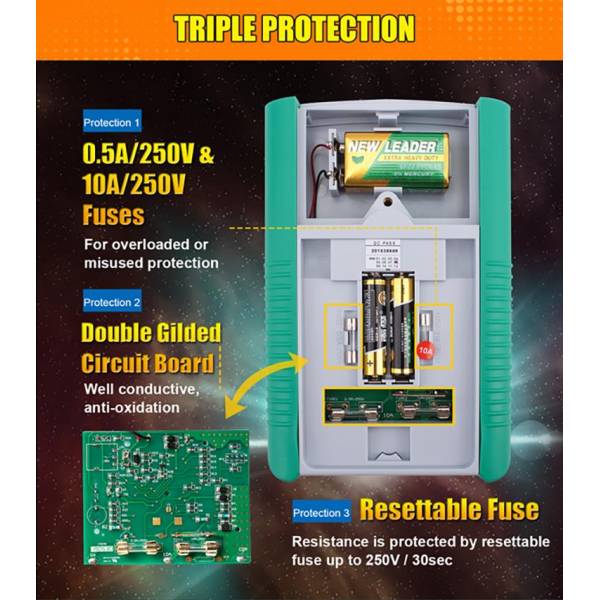

- Overload protection with two fuses 0.5A & 10A ensures uninterrupted opeation and long lifetime

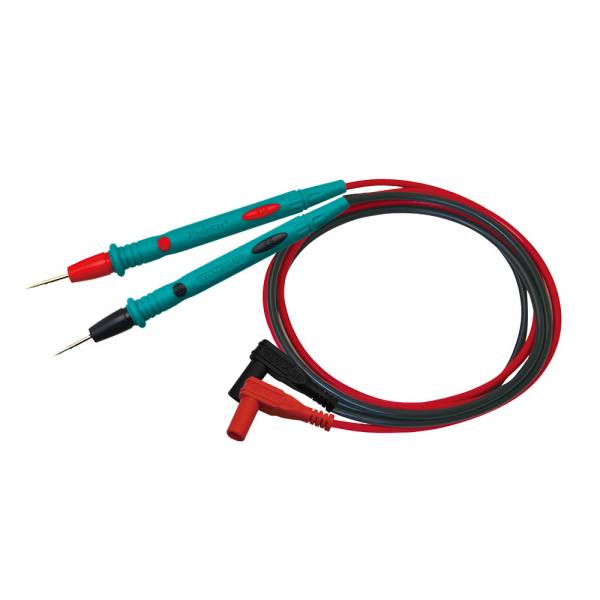

- Attached 1000V 10A gilded test leads, more stable and reliable
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
| DCV | 0.1/2.5/10/50/250V ±3.0%FSD, 1000V ±4.0%FSD |
| Null DCV | DC±5V, ±25V ±5.0%FSD |
| ACV | 10/50/250V ±4.0%FSD, 1000V±5.0%FSD |
| DCA | 50μ//2.5m/25m/250mA ±3.0%FSD,10A ±4.0%FSD |
| Resistance | ×1(0.2~2kΩ)/ ×10(2~20kΩ)/ ×100(20~200kΩ)/ |
| Capacitance | C(R×1k): 2000μF(Approx.) Max |
| Battery check | 1.5V/9V |
| Transistor check | Yes |
| Diode & LED test | Yes |
| Continuity with beeper | Yes |
| Front panel controls | Range selector switch with “OFF” position, 0Ω adjust knob |
| Battery | 1.5V AAA x 2 and 9V(NEDA1604) x 1 (Batteries not included) |
| Size | 171 x 108 x 37mm |
| Individual Packing | Colour box |
