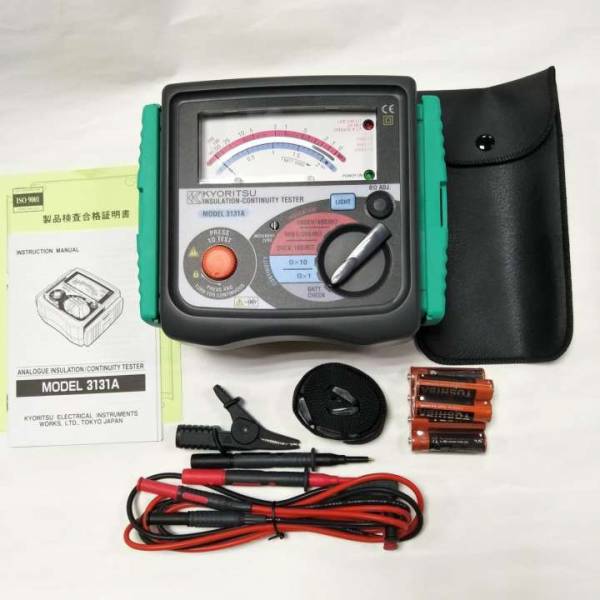

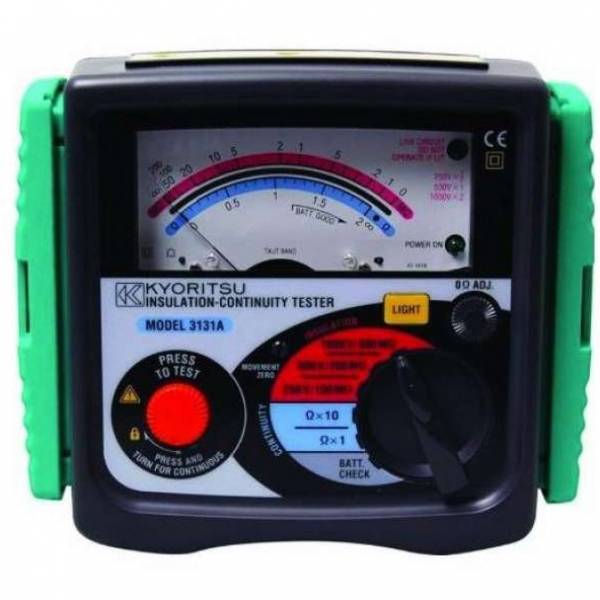

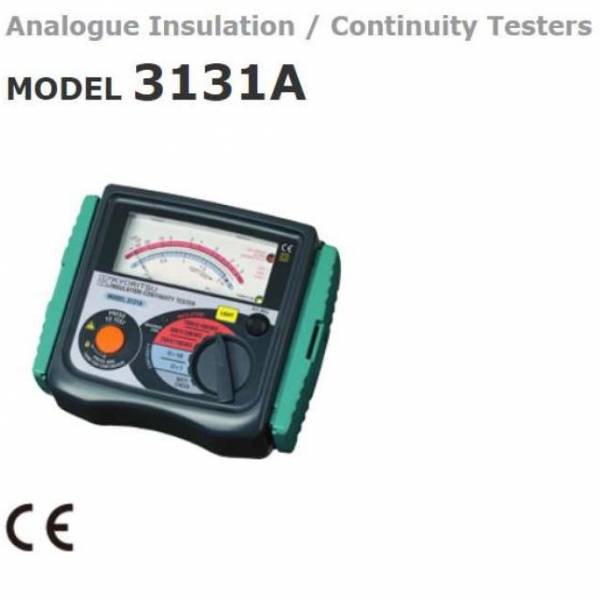

Kyoritsu 3131A Analog Insulation/Continuity Tester (Made in Japan)
- $324.00
Model 3131A is an analogue insulation tester with five ranges for insulation resistance measurement and continuity testing (resistance tests) of low voltage installations
Dust and drip proof construction to IP54
Three insulation test ranges : 250V/100MΩ, 500V/200MΩ, 1000V/400MΩ
Two continuity test ranges : 2Ω, 20Ω
Back light function to facilitate work at night or dimly light locations
Easy fo battery check
Power-on indication LED lighting during battery check and measurement
Live circuit warning indication with LED lighting and the buzzer sound
Fuse protected
Colour coded scales and range switch position for easy reading
Uses only 6 x 1.5V battery type R6, A4 or equivalent
Designed to safety standards: IEC61010-1; IEC61010-031; IEC61557-1,2,4,10
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
