PACIFIC ELECTRONICS - DISTRIBUTOR "KYORITSU ELECT.MEASURING INSTRUMENTS"

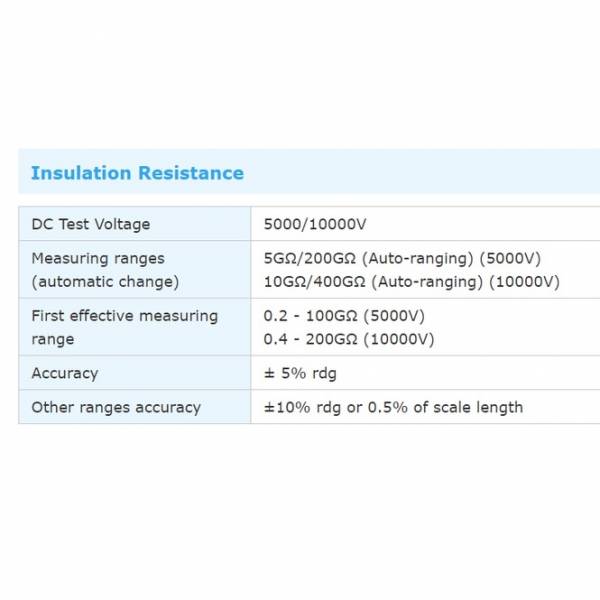

* Battery powered, the instruments test insulation up to 200GΩ at 5,000V and 400GΩ at 10,000V.

* Suited for heavy duty electrical maintenance and servicing of industrial installations, cables, transformers, generators and switchgear where high voltage insulation tests are required.

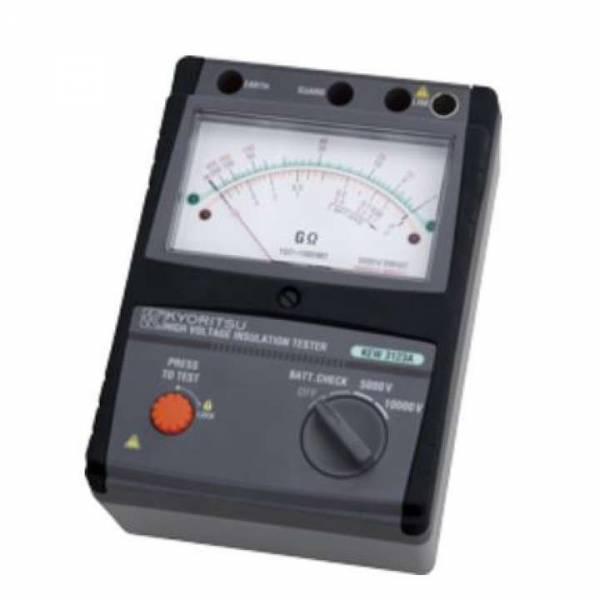

* Dual scales for low and high ranges which change automatically. Colour code scales for easy reading plus LED's that illuminate in matching colour.

* Drip proof construction. The case is sealed with rubber gaskets to protect internal circuit against rain.

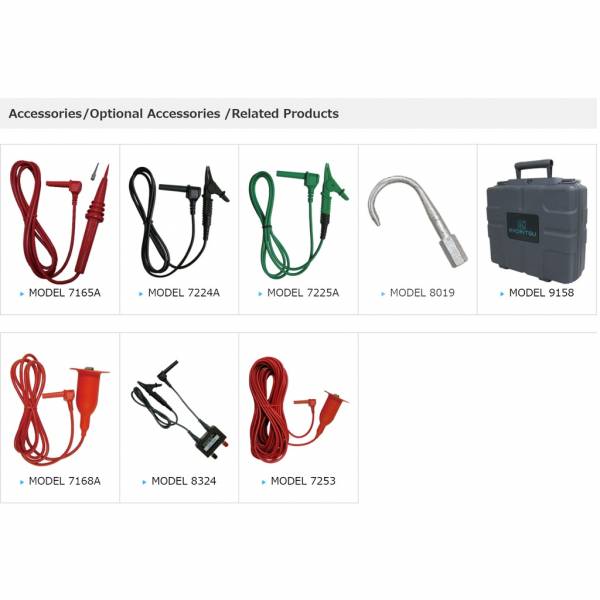

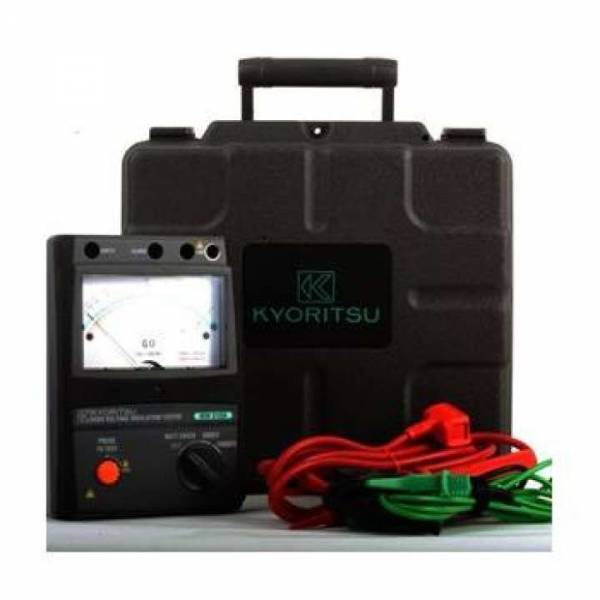

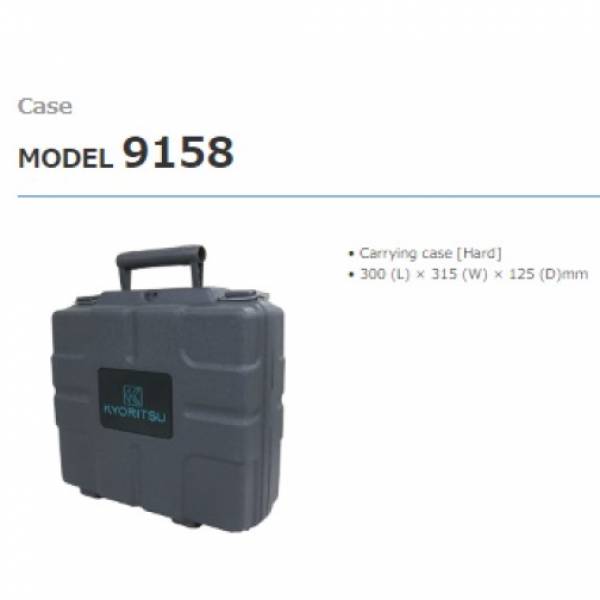

* Hard carrying case furnished as standard accessory. Houses both instrument and test leads in compact form. Made of plastic, it is highly water resistant.

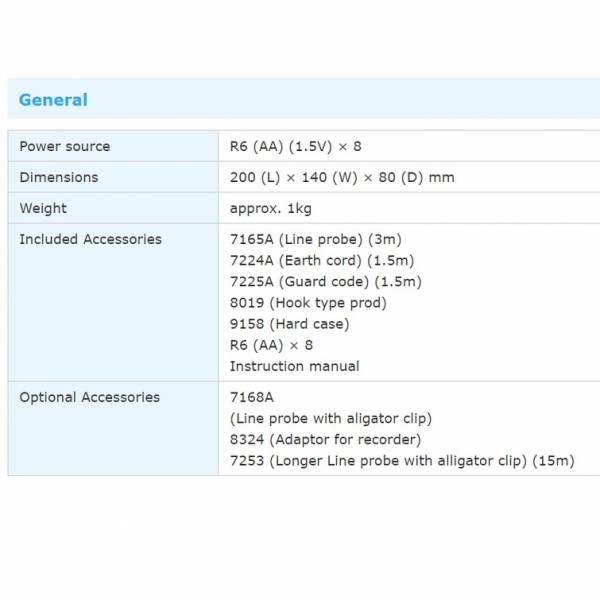

* Designed for low power consumption. Since the maximum current consumption is 90mA eight pieces of 1.5V SUM-3 (for equivalent) permit about 6 hours of continuous operation even when the instrument is used on maximum load or twice longer on minimum load.

* Rated output voltage is maintained down to 0.2GΩ / 0.4GΩ. This permits accurate measurements of low insulation resistance.

* Optional adaptor : Model 8324 is available for connection to recorder and enables cable insulation monitoring.
