PACIFIC ELECTRONICS - DISTRIBUTOR "KYORITSU ELECT.MEASURING INSTRUMENTS"

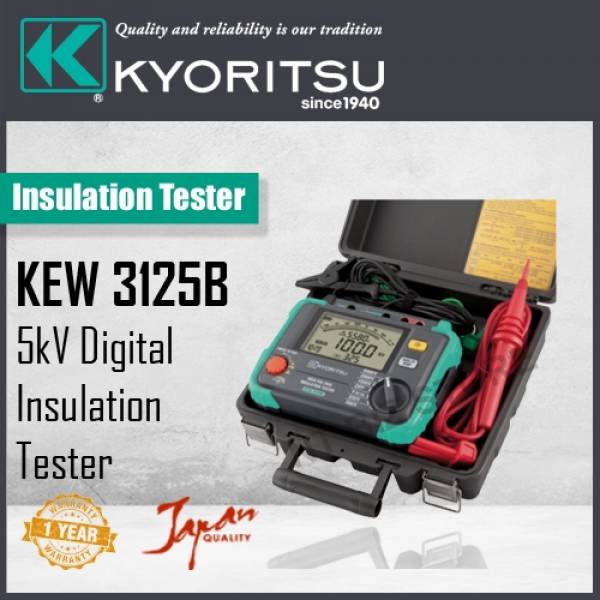

* KEW3125B is high voltage insulation resistance tester with 5 range for measuring insulation resistance.

* Designed to meet standards : IEC61010-1, 61010-2-030 (CAT III 600V / CAT IV 300V Pollution degree 2); IEC 61010-031 (Requirements for hand-held probes)

* With auto-discharge function: when an insulation resistance like a capacitive load is measured, electric charges stored in capacitive circuits are automatically discharged after the measurement. Discharge can be checked on the voltage monitor.

* Backlight function to facilitate working at dimly illuminated location or at nigh time work.

* Bar graph display

* Audible and visible LIVE circuit warning.

* With auto-power off function: the instrument automatically will turn off itself if there is no function change or button press for 10 min to conserve battery power.

* Auto-measurement and display of PI (Polarization Index), DAR (Dielectric Absorption Ratio)

* Product ship from Singapore by Kyoritsu Distributor
