Pro'sKit MT-7071K LCD Cable Length Toner & Prope Kit
- $287.85

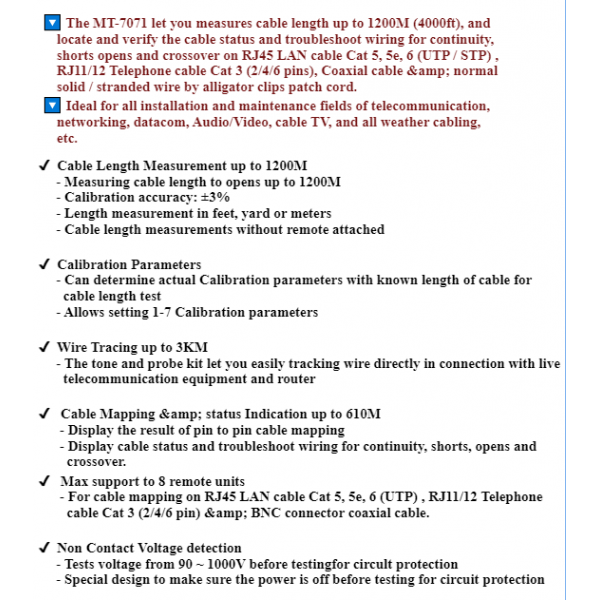

Features:
Cable Length Measurement up to 1200M
- Measuring cable length to opens up to 1200M. Calibration accuracy: ±3%
- Length measurement in feet, yard or meters
- Cable length measurements without remote attached
Calibration Parameters
- Can determine actual Calibration parameters with known length of cable for cable length test
- Allows setting 1-7 Calibration parameters

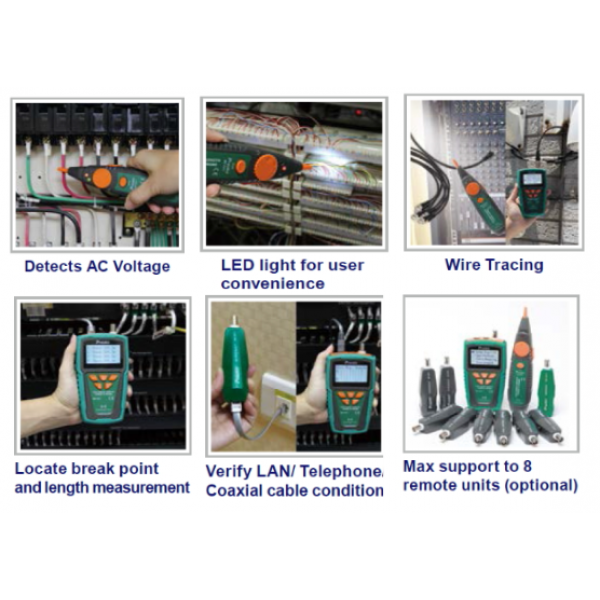

Wire Tracing up to 3KM
- The tone and probe kit let you easily tracking wire directly in connection with live telecommunication equipment and router
Cable Mapping & status Indication
- Display the result of pin to pin cable mapping
- Display cable status and troubleshoot wiring for continuity, shorts, opens and crossover.
- Max support to 8 remote units
Non Contact Voltage detection
- Tests voltage from 90 ~ 1000V, special design to make sure the power is off before testing for circuit protection
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
MT-7071K

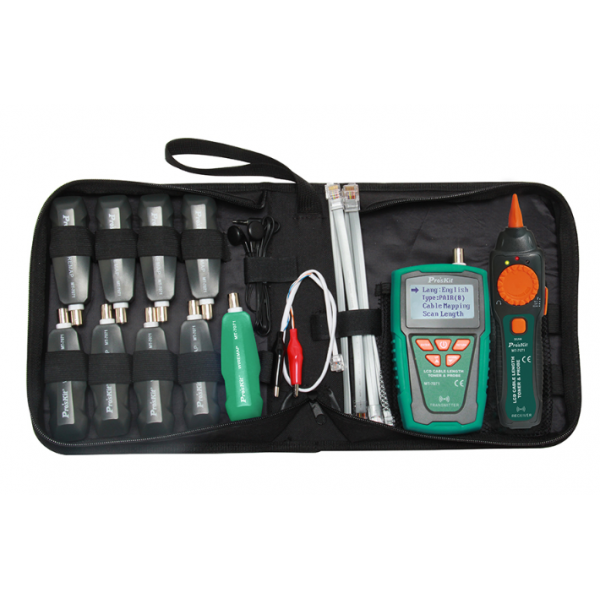

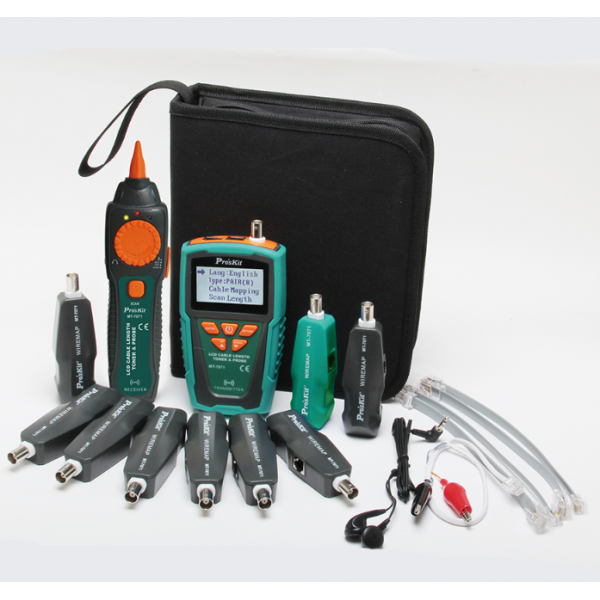

LCD Cable Length Toner & Prope Kit -1pcs Standard Remote Unit & Multi Remote Unit ID#1~ID#8 (8 pcs)
Description
The MT-7071K Included 8+1 remote units, let you measures cable length up to 1200M (4000ft), and locate and verify the cable status and troubleshoot wiring. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.
| MT-7071K Toner specifications | |
| Cable types tested | RJ45 Lan cable Cat 5、5e、6、7 (UTP/STP)、RJ11/12 Telephone cable Cat 3 (2/4/6 pin)、Coaxial cable & normal solid/Stranded wire by alligator clips patch cord |
| Cable test modes | 1 KHz two-note tones for location and isolating cables, wire mapping for validate (detects wire continuity, shorts, opens, miswired, crossover) and open length tested. |
| Measurement technology | Cable capacitance method |
| Max. distance to opens for test | 1,200 meter (4,000 feet/1,300 yard) |
| Min. distance to opens for test | Split pairs：1 meter (3 feet)、Other cable：1.25 meter (4 feet) |
| Typical accuracy of length test | ±3.0% (±0.5 meter/ ±1.5 feet/ ±0.5 yard) |
| Calibration accuracy of length test | ±2.0% (±0.5 meter/ ±1.5 feet/ ±0.5 yard), standard cable ＞10 meter |
| Resolution & Unit of length test | 0.1 meter/ feet/ yard, Rate：1~3 sec./time |
| Calibrating parameters memory | 1~7 sets, allowing rewrite by new calibrating parameters |
| Max. distance of transmission & cable map | 3 km(1 kHz) & 300 m |
| Cable map & Shielded indication | LCD 1~8 & G |
| Other functions | Continuity test, Live telecommunication equipment test and router tes, Voltage protection AC 60V or DC 48V, Auto power off, Low battery display |
| Dimension (L×W×D) | 138 × 80 × 35 mm |
| MT-7071K Receiver specifications | |
| Signal status indication | 1 kHz , 1 LED & Buzzer, bulding ear jack |
| NCV indication & LED illumination | 1 LED (AC90~1000V) & 1 LED |
| Dimension (L×W×D) | 198×45×33 mm |
| MT-7071 Remote unit specifications | |
| Remote unit | 1+8 pcs remote units, (Included) |
| Compatible connectors | RJ45(8 pin)、RJ11/12(6 pin)、BNC connectors |
| Remote unit dimension (L×W×D) | 90×32×30mm |
| Accessories | RJ45 cable patch cord、RJ11/12 cable patch cord、Alligator clips patch cord、Earphone、pounch bag |
