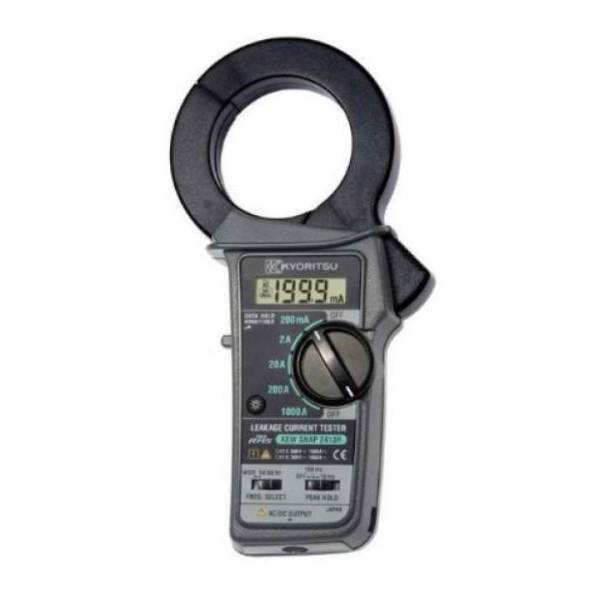

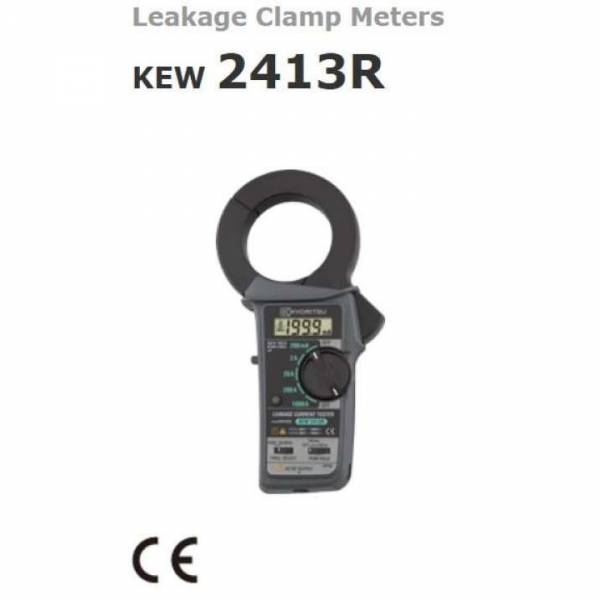

Kyoritsu 2413R Leakage Clamp Meter

  • $708.00

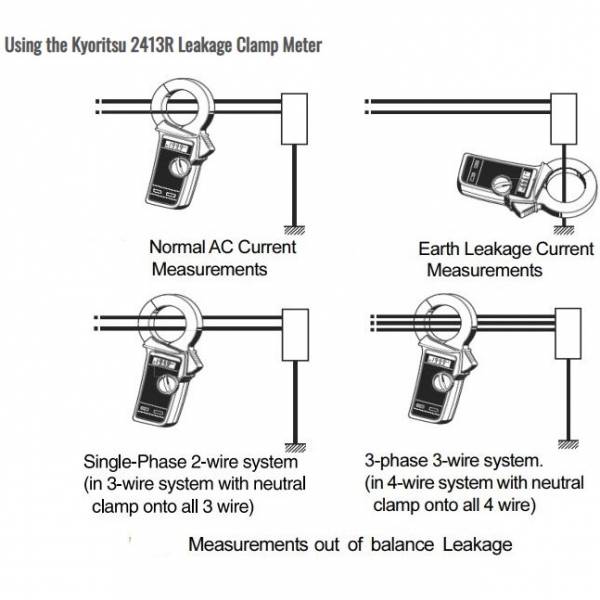

* KEW SNAP 2413R is a unique digital clamp meter for both very low current and high current measurements. Its shielded transformers jaws minimizes the effect of external stray magnetic field, enabling leakage current measurements.

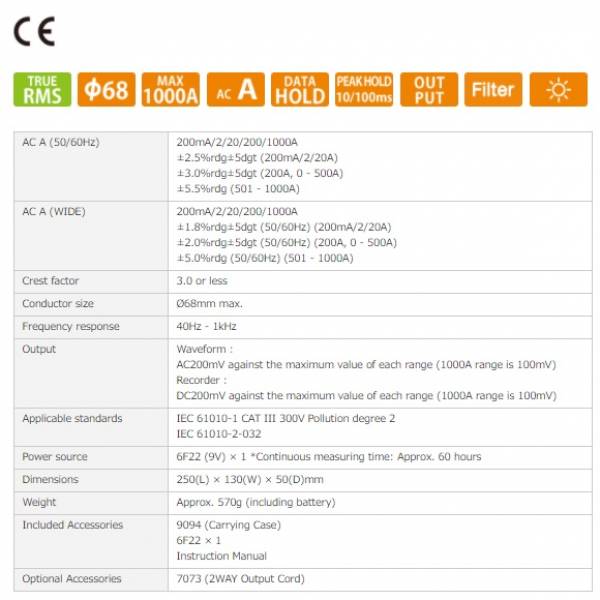

* Measures from 0.1mA to 1000A AC and provides frequency response higher than 1kHz on all measuring ranges. * * * * Measurements also possible with approximately -7% accuracy at 20 kHz on 200mA range.

* Provides a frequency selector switch - 50/60Hz or WIDE - to turn on or off an incorporated low pass filter. This permits current measurement in mains fundamental frequency only or a wide range of frequencies, including those from such devices as inverters.

* Peak-hold facility with selectable response time of 10ms or 100ms.

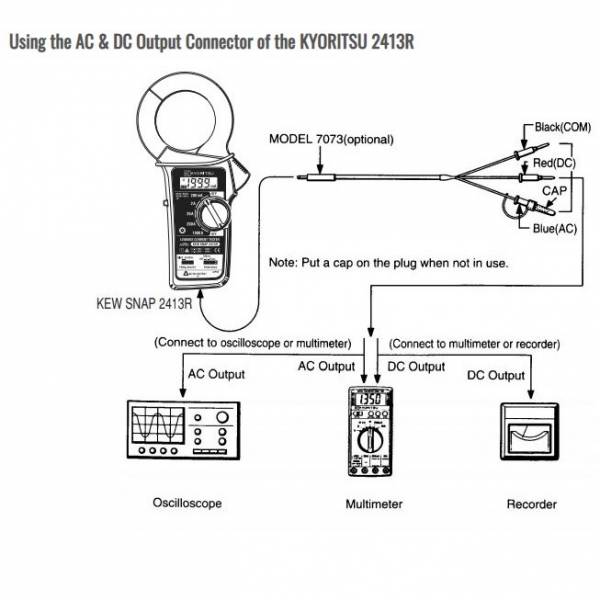

* Two-way analogue output terminal : Provides AC voltage output proportional to the current under test for monitoring the waveform with an oscilloscope.

* Data hold function to allow for easy readings in hard-to-reach locations. Display can be observed away from the conductor.

* LCD back light function to facilitate working at dimly lit situation.

* Product ship from Singapore by Kyoritsu Distributor


Share

This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
