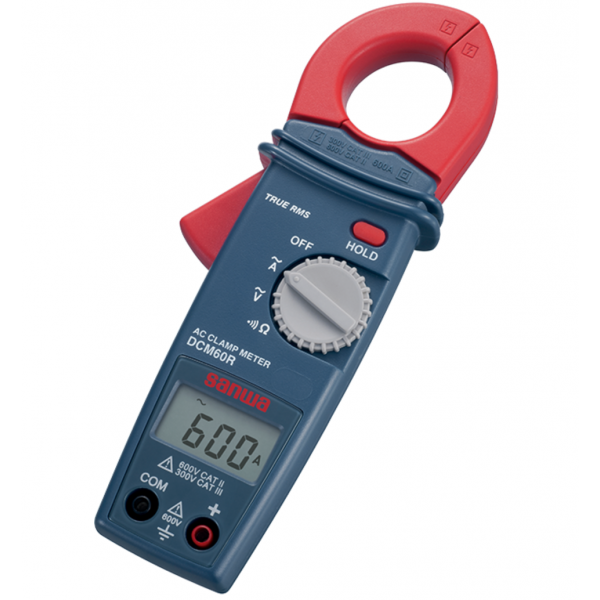

AC Digital Clamp Meter
SANWA DCM60R
- $95.00
Digital Clamp Meter
Low cost & DMM functions
- ACV & resistance measurement
- Small design & easy to carry
Share
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
Models: Sanwa DCM60R Digital Clamp Meter
Sanwa DCM60R
Included Accessories:

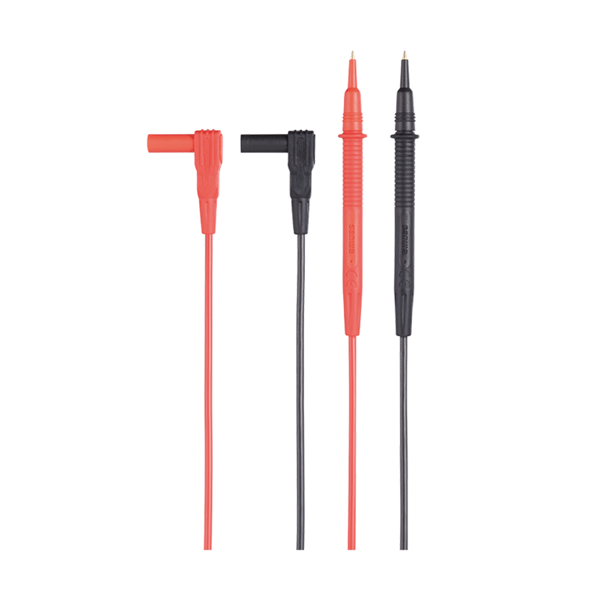

- TL21a Test Lead

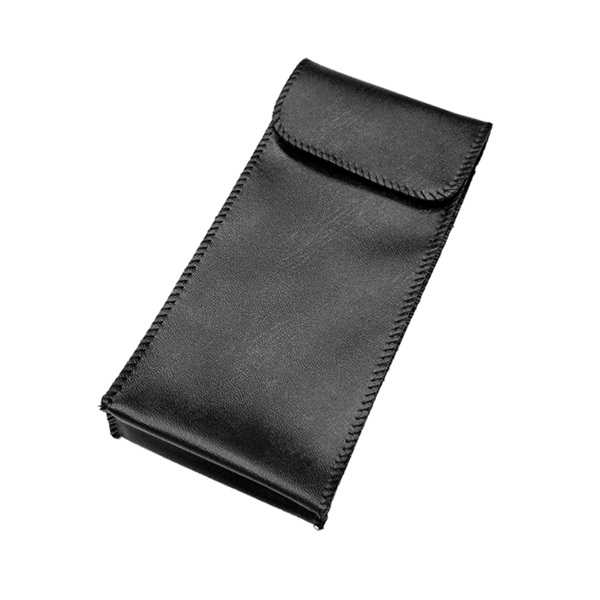

- C-DCM60L Carrying Case
| Function | Measuring range | Best accuracy | Resolution |
| ACA | 199.9/600A | ±(2.0%+5) | 0.1A |
| ACV | 199.9/600V | ±(1.5%+5) | 0.1V |
| Resistance | 199.9Ω | ±(1.9%+3) | 0.1Ω |
| Continuity | Buzzer sounds at less than approx. 100Ω Open voltage: approx. 0.1V | ||
| Sampling rate | Approx. 2 times/sec. |
| Bandwidth | 50-400Hz |
| Display | 1999 |
| Clamp diameter/Conductor size | Φ25mm/10×30mm |
| Battery | R03×2 |
| Battery life | Approx. 250 hrs. |
| Size/Mass | H187×W50×D29mm/Approx. 210g |
| Safety standards | IEC61010 CAT.Ⅲ300V/CAT.Ⅱ600V |
- True RMS (True root-mean-square value) -
- True RMS value. AC current and voltage of a non-sine wave can be measured by true RMS values.
- Continuity buzzer -
- The buzzer sounds when the measuring object is electrically conducting.
- Data hold -
- A value indicated on the display is fixed. It is fixed even after the test lead is removed, and can be used as a record for reference purposes.
