AC Digital Clamp Meter

AC Digital Clamp Meter AC Digital Clamp Meter AC Digital Clamp Meter
AC Digital Clamp Meter AC Digital Clamp Meter AC Digital Clamp Meter

KYORITSU KEWSNAP200

  • $70.00

• Small and handy clamp meter
• IEC 61010-1 Safety Standard CAT Ⅲ 300V, CAT Ⅱ 600V
• 400A AC Clamp meter
• DMM function ACV, DCV, Ω, Continuity Buzzer.

200-icon


Share

This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.

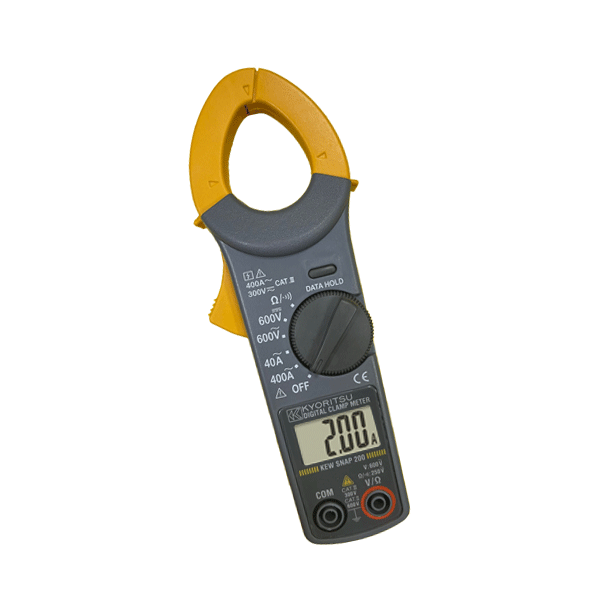

Model: KEWSNAP200 AC Digital Clamp Meter

Kyoritsu KEWSNAP200

Included Accessories:

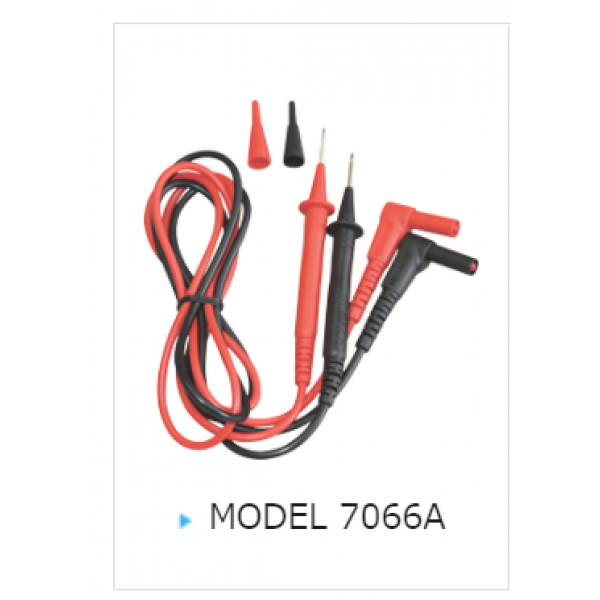

  • 7066A (Test leads)
  • R03 (AAA) x 2
  • Instruction manual

AC A

40.00/400.0A
±2.0%rdg±6dgt(50/60Hz)

AC V

400.0/600V(Auto-ranging)
±2.0%rdg±5dgt(50/60Hz)

DC V

400.0/600V(Auto-ranging)
±1.5%rdg±5dgt

Ω

400.0/4000Ω(Auto-ranging)
±2.0%rdg±5dgt

Continuity buzzer

buzzer sounds below 50±35Ω

Conductor size

φ30mm max.

Applicable standards

IEC 61010-1 CAT III 300V(ACA), CAT II 600V Pollution degree 2
IEC 61010-2-032, IEC 61326-1

Power source

R03(1.5V) (AAA) × 2
*Continuous measuring time: Approx. 200hours (Auto power save: approx. 10 minutes)

Dimensions

184(L) × 68.6(W) × 38.5(D)mm

Weight

Approx. 190g(including batteries)

Included Accessories

7066A (Test leads)
R03 (AAA) × 2,
Instruction Manual

Optional Accessories

9105 (Carrying case)



Manual
