PACIFIC ELECTRONICS - PRO'SKIT SOLE AGENT "TOTAL TOOLS SOLUTIONS"

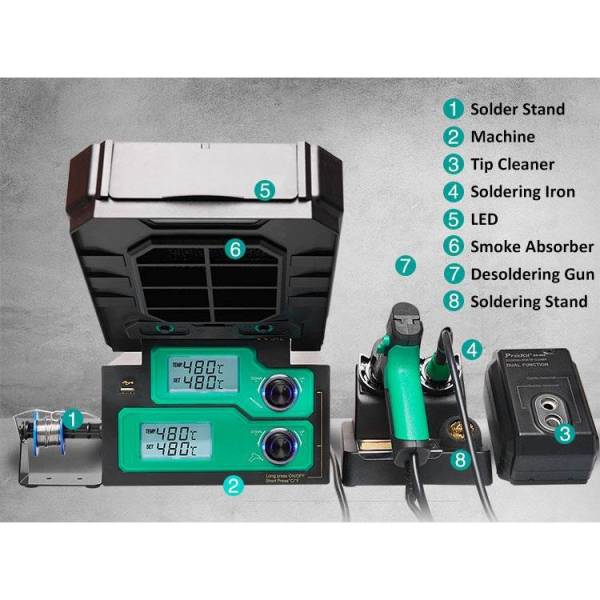

• 6 In 1, Multifunction Repair Station

• Soldering, Desoldering, Smoke Absorbing, Auto Tip Cleaning

• Smart & Stable Temperature Control

• Auto Sleep, Energy Saving



Model SS-988B SS-988H SS-988E

Voltage AC220-240V 50Hz AC110-120V 60Hz

Soldering iron/ Desoldering gun Power 250W(Max.)

Display LCD（Dual color backlight）

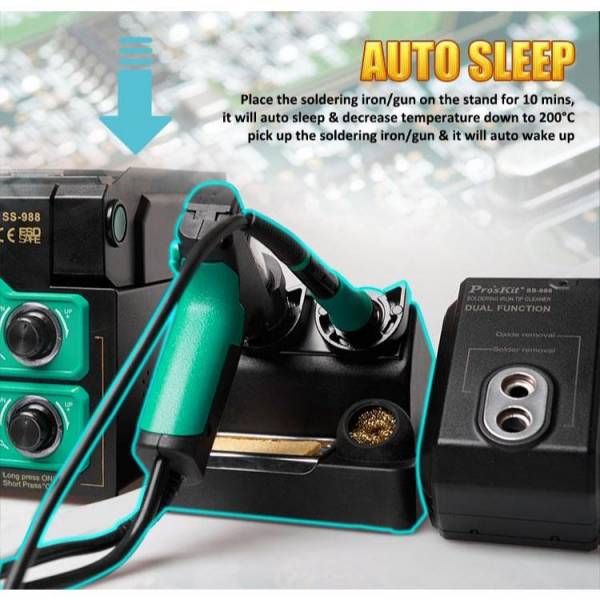

Sleep mode Idle for 10min, with temperature at 200℃

℃/℉ display Yes

Soldering iron Power 60W(Max.130W) (DC 18V)

Temperature 160°C ~ 480°C(320℉-896℉)

Tip 5SI-216N-B(included)

Heater Ceramic heater (9SS-988-HT)

Desoldering gun Power Heater 130W （Max）(DC 18V)

Pump 50W

Temperature 160°C ~ 480°C(320℉-896℉)

Suction >600mm Hg

Heater 4-wire ceramic heater（5SS-988-H）

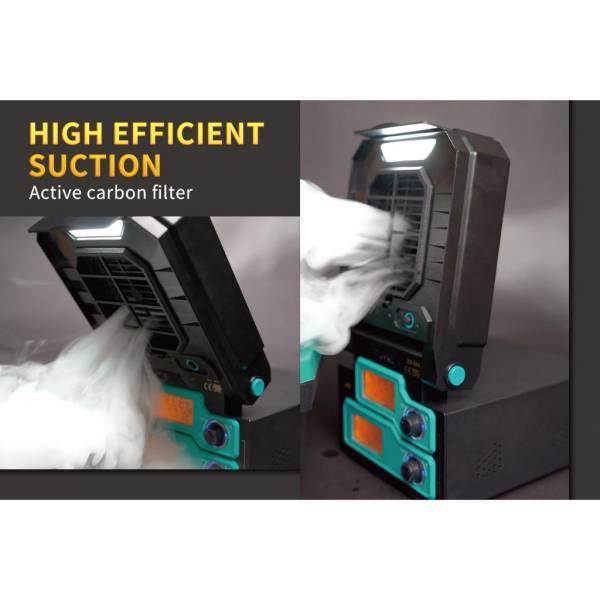

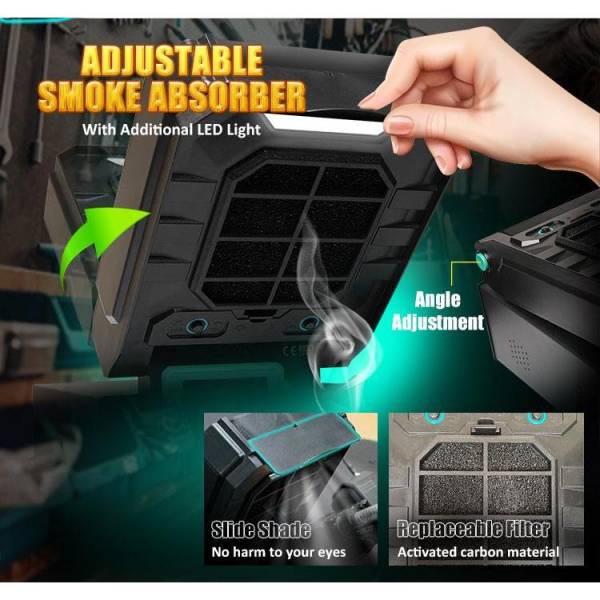

Smoke absorber Power 5W

Air volume 1.0m3/min

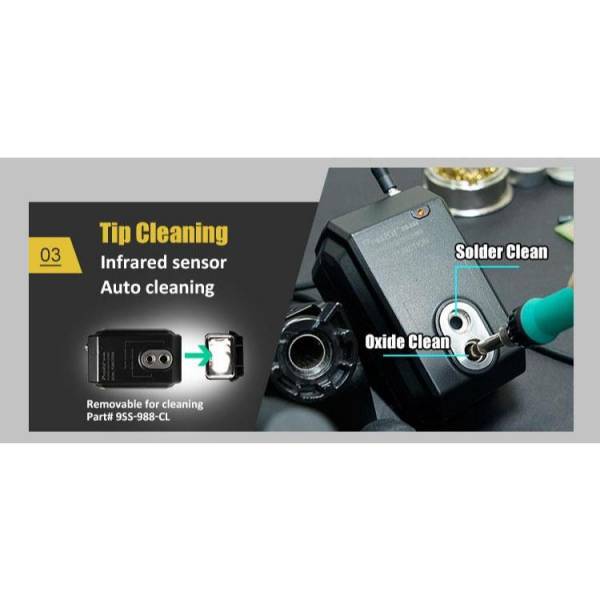

Tip cleaner Power 2W(DC18V)

Solder removal ∅7mm

Oxide removal ∅10mm

Dimensions 133*83*69mm

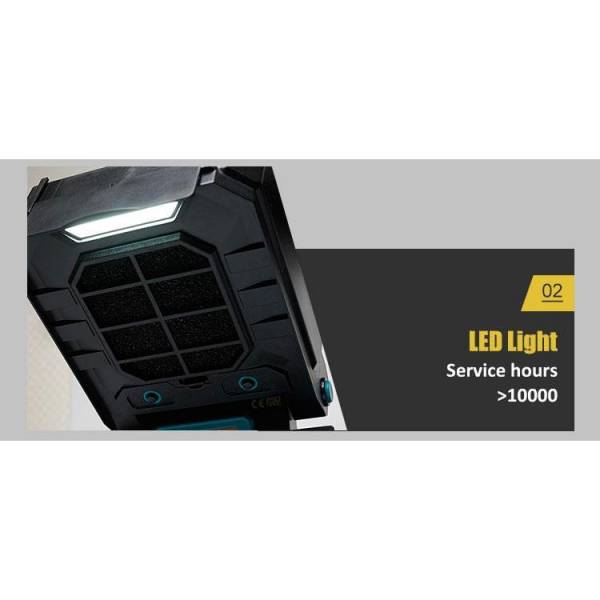

LED light Power 5W

Lumen About 100Lm

Color temperature 6000 Kelvin

USB output DC5V 1A

Fuse ∅5xL20mm 3.15A/250V

Accessories Activated carbon filter: 2pcs(1pc mounted);

Filter sponge: ∅13mmx2pcs, ∅16mmx4pcs(1pc each mounted); Cleaning pins: ∅0.7 mm /∅0.9 mm /∅1.2mm;

Desoldering gun nozzles: ∅.0mm/∅1.2mm/∅1.5mm; Soldering wire reel: ∅1.0 mm soldering wire/10g

2-in-1 soldering iron stand(with cleaning ball and sponge)

Certification CE, RoHS RoHS RoHS

Packaging dimensions(mm) 385x280x205mm

Packaging weight(kg) About 5.4kg
