PACIFIC ELECTRONICS - PRO'SKIT SOLE AGENT "TOTAL TOOLS SOLUTIONS"

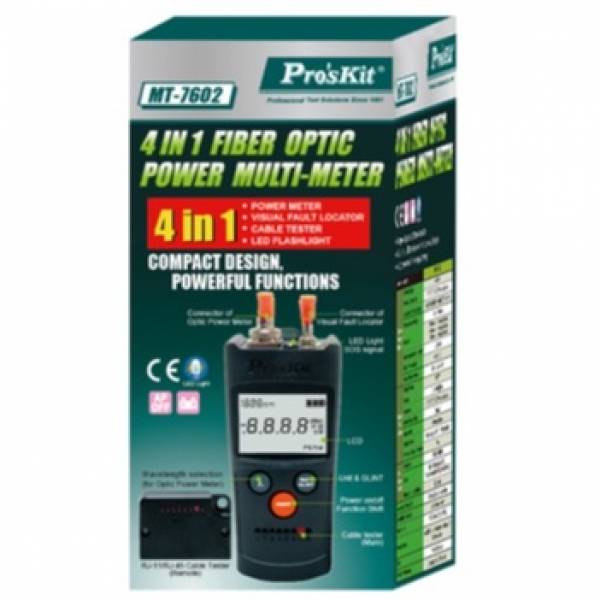

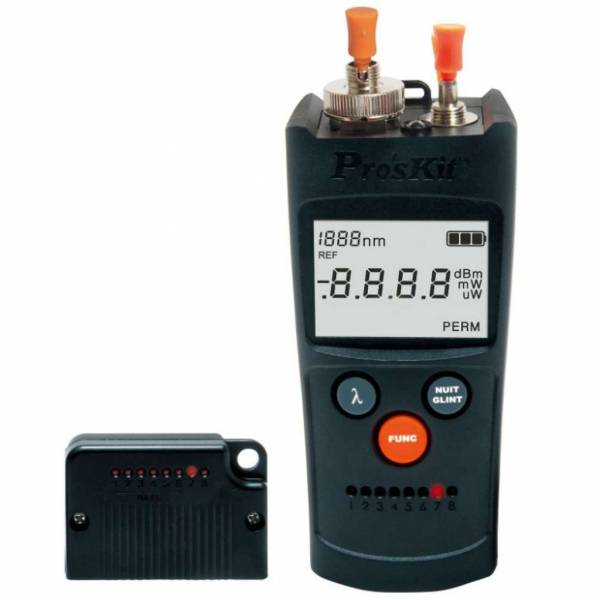

Pro'sKit MT-7602 - 4 In 1 Fiber Optic Power Multimeter c/w LC adaptor (5MT-7601-LC) - Ideal for Telecommunication networks & FTTx / FTTH application :



✔ Function 1 FIBER OPTICAL POWER METER:

- Wide range of power measurement from 850nm to 1625nm

- Multiple mode:850nm/1300nm/

- Single mode:1310nm/1490nm/1550nm/1625nm

- Power measurements in dBm, mW and uM

- Supports 2.5mm universal connectors (for ST/SC/FC)



✔ Function 2 VISUAL FAULT LOCATOR

- Easy to locate the breakpoint and bad connections in fiber optic cables

- Supports 2.5mm universal connectors (for ST/SC/FC)

- Both continuous and flashing modes available

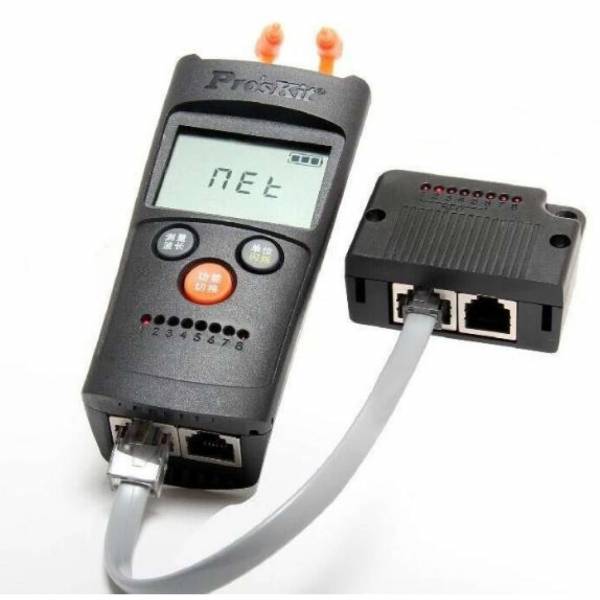

✔ Function 3 CABLE TESTER

- Pin to pin cable map indicator (1~8 LEDs)

- Tests two types of connectors (RJ-11&RJ-45)

- The maximum length measurement: 600M



✔ Function 4 LED FLASHLIGHT

- Convenient for working in a dark environment

- Features 2 modes for long illumination and SOS signal
