PACIFIC ELECTRONICS - PRO'SKIT SOLE AGENT "TOTAL TOOLS SOLUTIONS"

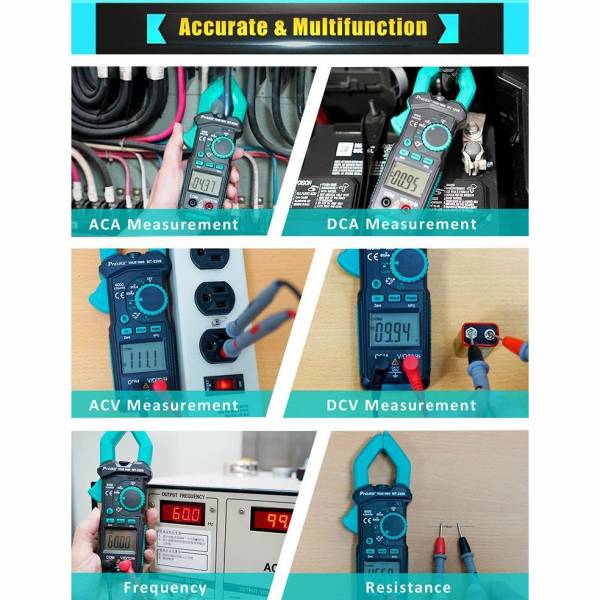

ACV ACA True RMS Measurement

VFC Detection

LoZ Measurement

NCV Detection



Specification:

DCV 600mV / 6V / 60V ±(0.5%+5d), 600V ±(0.8%+5d)

ACV 6V / 60V ±(1.0%+5d), 600V ±(1.2%+10d) True RMS

LoZ DC/AC V 1-600V ±(2.0%+3d)

DCA 60A ±(3.0%+15d) / 600A ±(3.0%+5d)

ACA 60A / 600A ±(2.5%+5d) True RMS

Resistance(Ω) 600Ω / 6K / 60K / 600K / 6M ±(0.8%+5d), 60MΩ ±(1.2%+5d)

Capacitance 6nF ±(5.0%+15d)/ 60nF / 600nF / 6uF / 60uF / 600uF / 6mF ±(4.0%+5d), 100mF ±(5.0%+5d)

Temperature -20°C~1000°C ±(1.0%+3d), -4°F~1832°F ±(1.0%+3d),

Frequency(Hz) (V) 600Hz / 6kHz / 60kHz / 600KHz ±(1.5%+5d), (A) 600Hz ±(1.5%+5d)

V.F.C Y

NCV Y

HOLD Y

Battery 1.5V AAA×2 pcs

Size (D×W×H)mm 190×71×30 mm
