HIOKI P2000
- $216.00
The voltage of the solar installations (also known as photovoltaic or PV installations) increases to reduce cost and improve the efficiency of solar equipment. As a result, it is important to select measuring instruments that support higher voltage measurement to protect the safety of inspection workers.
The P2000 enables high voltage measurement up to CAT III 2000 V by simply connecting to a compatible Hioki clamp meter or digital multimeter (DMM).
Key Features:
- Enables high voltage measurement up to CAT Ⅲ 2000 V
- Safely measure solar installations like the mega-solar without interrupting the grid
- Connects to compatible Hioki clamp meters and digital multimeters (DMMs)
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.

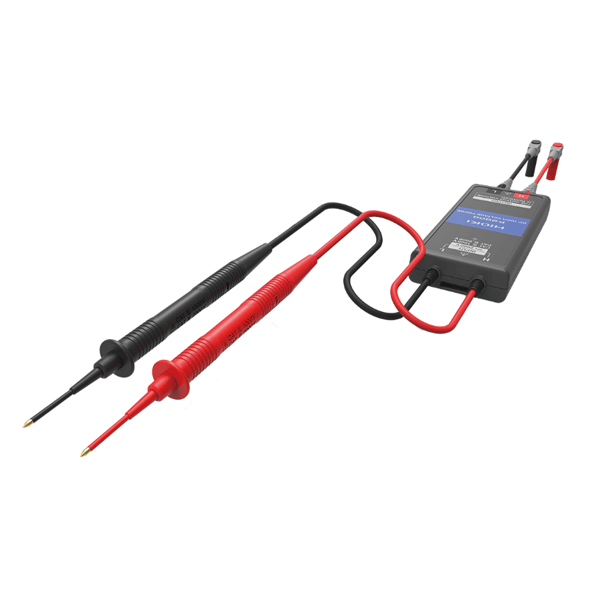

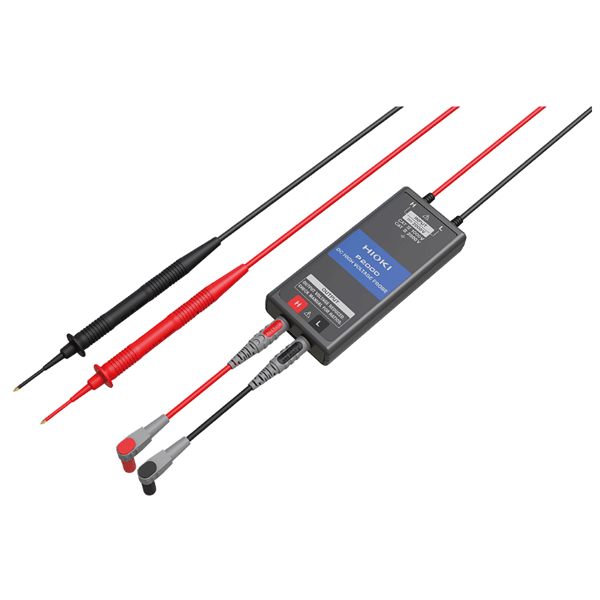

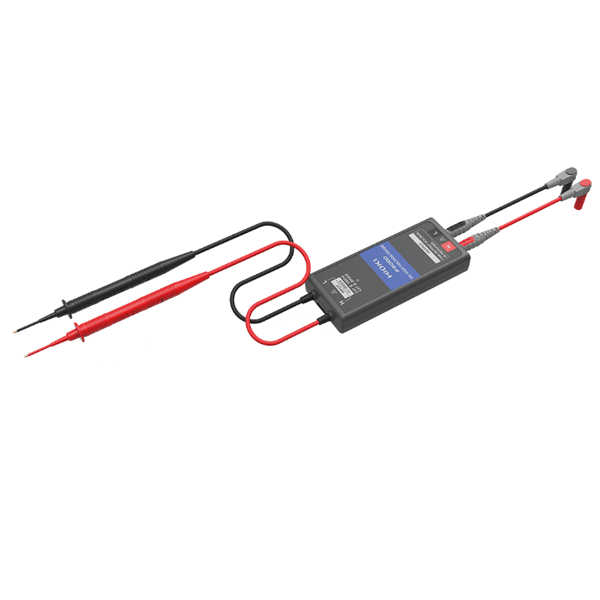

Models: P2000 DC High Voltage Probe
HIOKI P2000
Included Accessories:
- Connection Cable Set L4943 ×1
- Strap with buckle ×2, Strap ×1
- Carrying Case C0205 ×1
- Instruction Manual ×1
- Operating Precautions ×1
Basic specifications
Accuracy guaranteed: 1 year
| Maximum input voltage (*1) | DC 2000 V |
| Maximum rated line-to-ground voltage | 1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V |
| Input resistance | 20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open) |
| Overload protection | 2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) |
| OUTPUT terminal | 4 mm banana terminal |
| Operating temperature and humidity range | Temperature: |
| Storage temperature and humidity range | -30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing) |
| Standards | EN 61010 |
| Included accessories | Connection Cable Set L4943 ×1, Strap with buckle ×2, Strap ×1, Carrying Case C0205 ×1, Instruction Manual ×1, Operating Precautions ×1 |
Accuracy table for compatible instruments
| Model | Combined accuracy |
| DT4261 | Range 600.0 V: Combined accuracy ±0.5% rdg ±0.2 V |
| CM4141-50 | Range 600.0 V: Combined accuracy ±1.0% rdg ±0.3 V |
| DT4281 | Range 60.000 V: Combined accuracy ±0.8% rdg ±0.002 V (output rate 1/10) |
| DT4252 | Range 60.00 V: Combined accuracy ±1.2% rdg ±0.05 V (output rate 1/10) |
| DT4255 | Range 60.00 V: Combined accuracy ±1.2% rdg ±0.03 V (output rate 1/10) |
- *1:Maximum rated voltage between INPUT H and INPUT L
