Multimeter

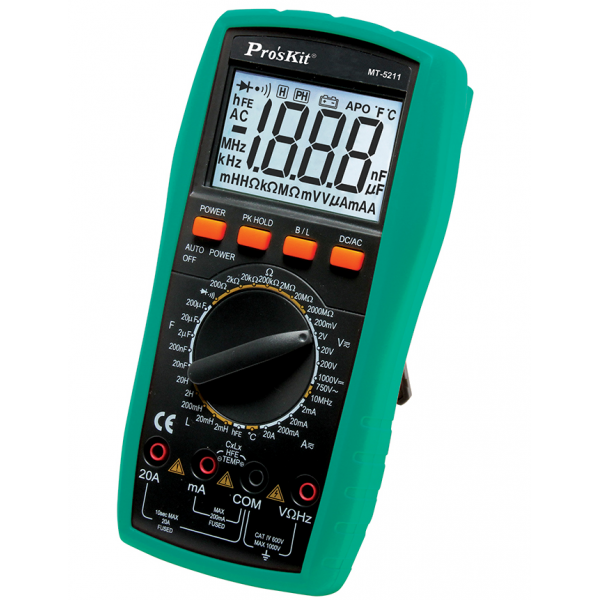

PRO'SKIT MT-5211 3 1/2 Digital LCR Multimeter
- $65.00
Description :
- Fully featured with LCR & DMM Multimeter
Features: :
- 3 1/2 digits 1999 counts.
- Dual slope A/D conversion.
- Large backlight LCD display.
- Extra functions: continuity with beeper, diode test, data hold, auto power off, low battery indication, over load indication, backlight, transistor tester.
- Ideal for a wide variety of electrical and electronic testing applications.
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
| DC Voltage (V) | 200mV/2V/20V/200V±(0.5%+3d),1000V±(1.0%+5d) |
| AC Voltage (V) | 200mV±(1.2%+3d),2V/20V/200V±(0.8%+5d),750V±(1.2%+5d) |
| DC Current (A) | 2mA/20mA±(0.8%+3d),200mA±(1.2%+4d),20A±(2.0%+5d) |
| AC Current (A) | 2mA/20mA±(1.0%+5d),200mA±(2.0%+5d),20A±(3.0%+10d) |
| Resistance (Ω) | 200Ω±(0.8%+5d),2K/20K/200K/2MΩ±(0.8%+3d), 20MΩ±(1.0%+15d),2000MΩ±(5.0%(reading-10)+20d) |
| Capacitance (uF) | 20nF/200nF/2uF±(2.5%+20d),20uF/200uF±(5.0%+5d) |
| Inductance (L) | 2mH/20mH/200mH/2H/20H±(2.5%+20d) |
| Temperature (T) | (-20~1000˚C)<400˚C±(1.0%+4d) ,≧400˚C±(1.5%+15d) |
| Frequency (Hz) | 2k/20k/200k/2000K/10M Hz±(1.0%+10d) |
| Power source | 9V 6F22 battery (Not included) |
